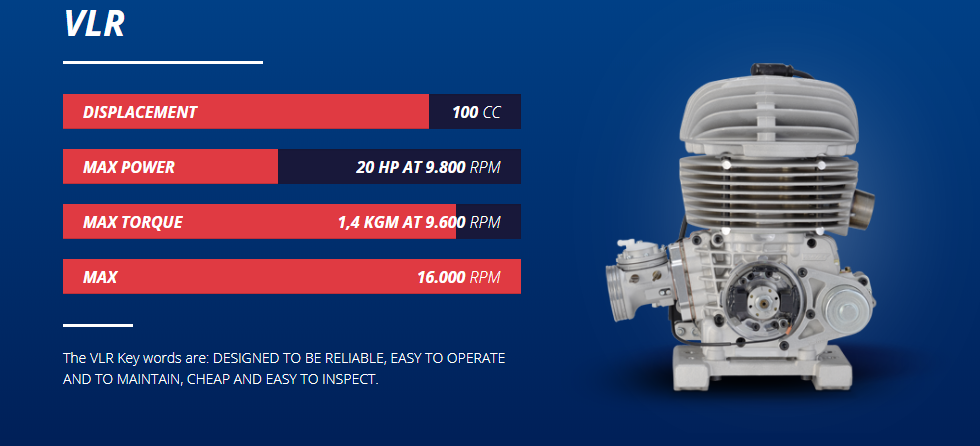

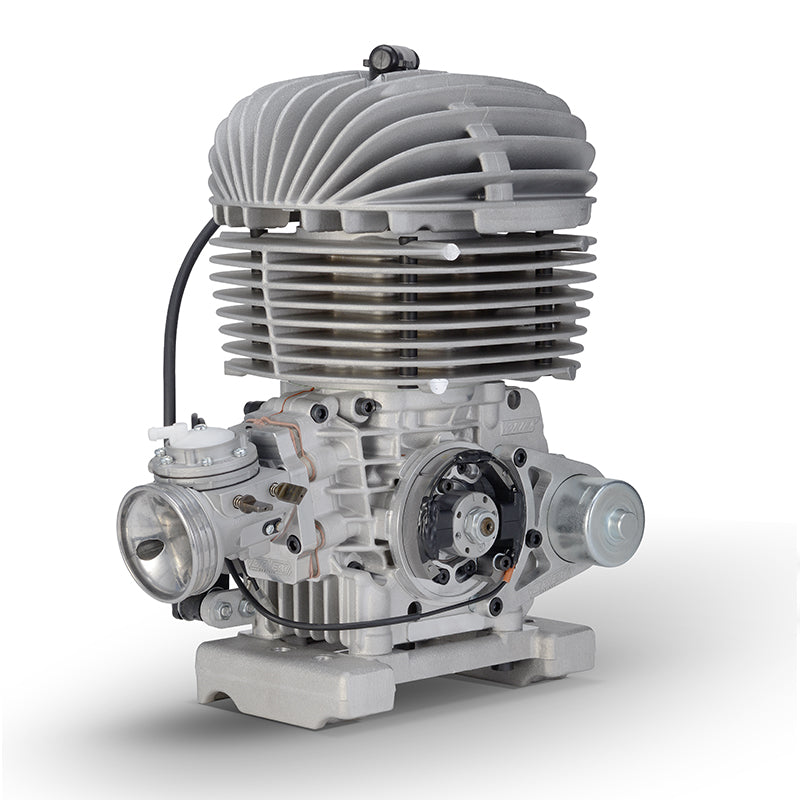

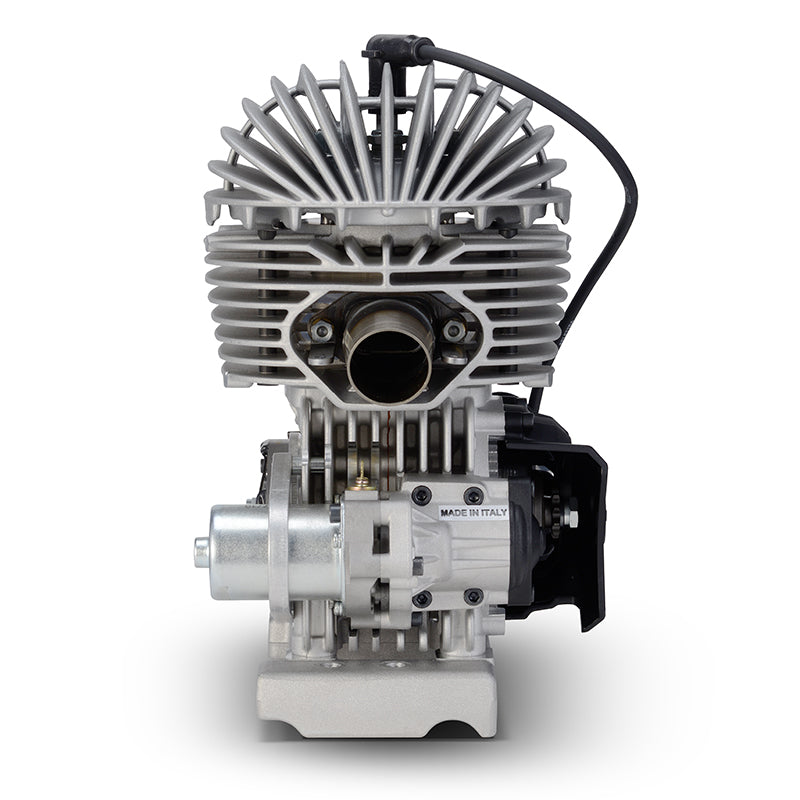

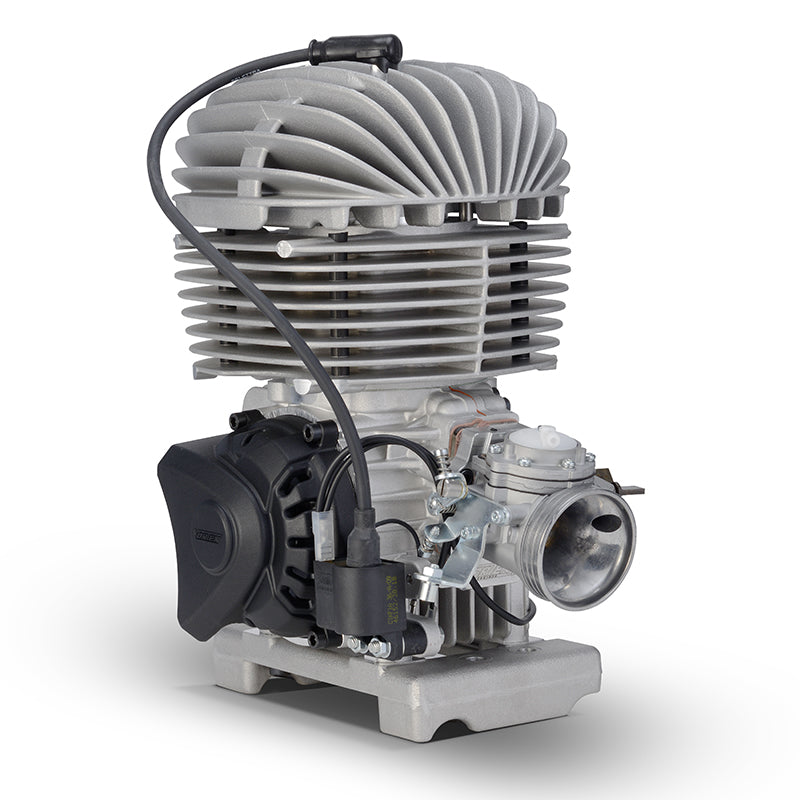

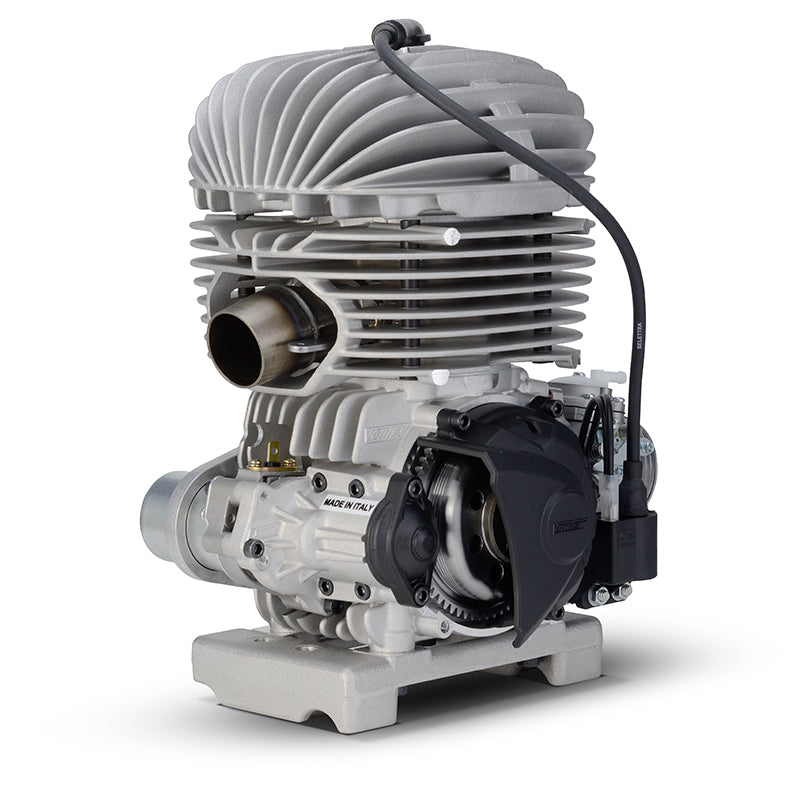

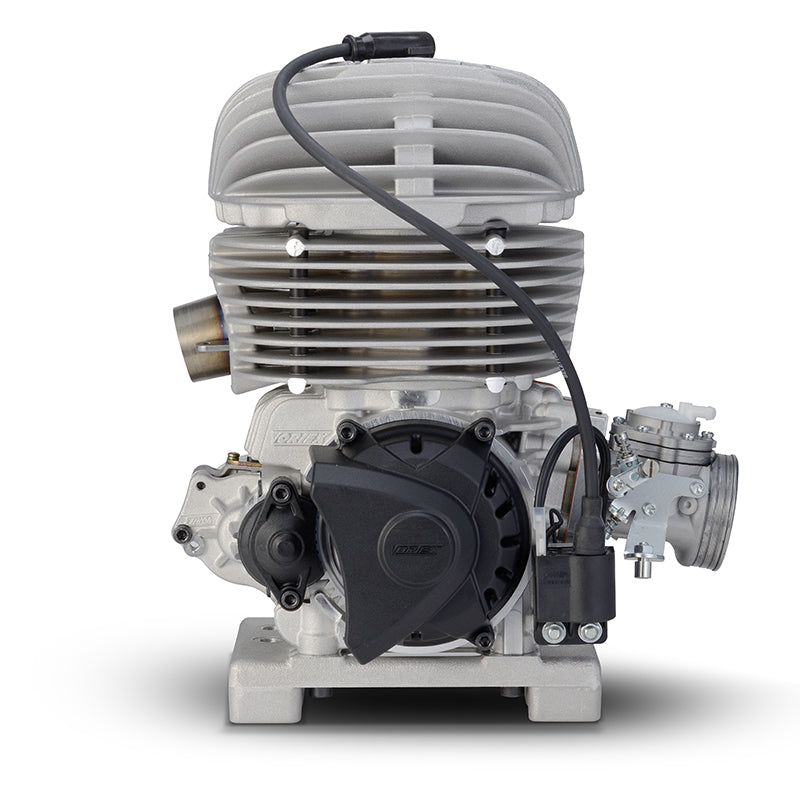

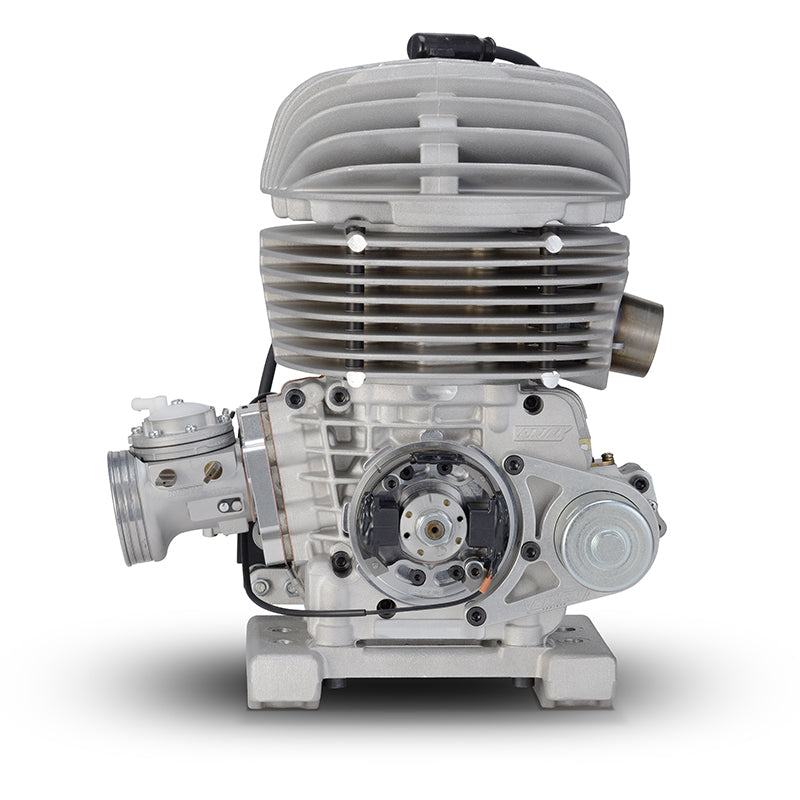

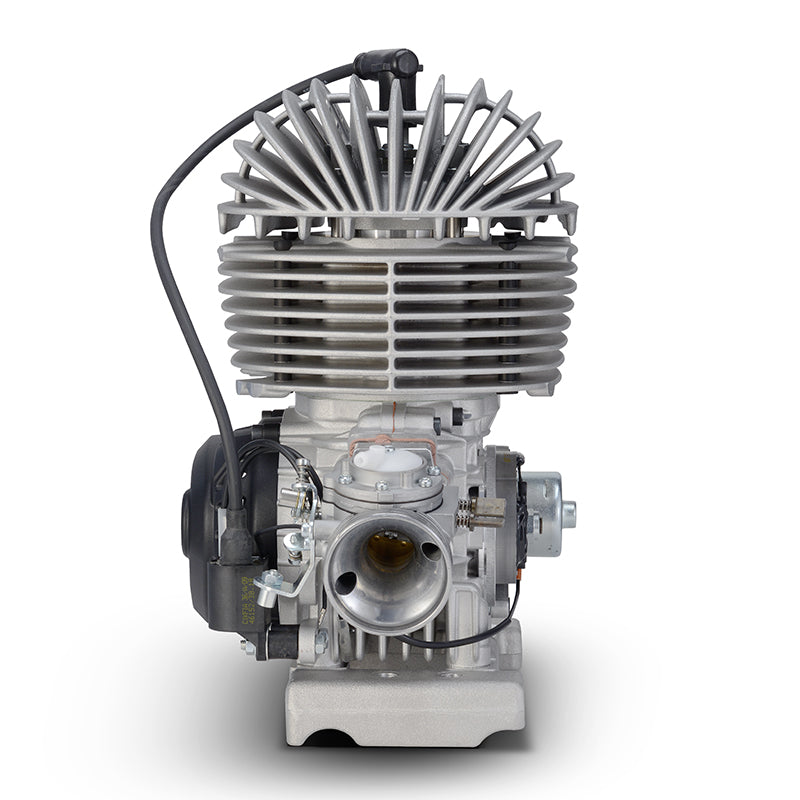

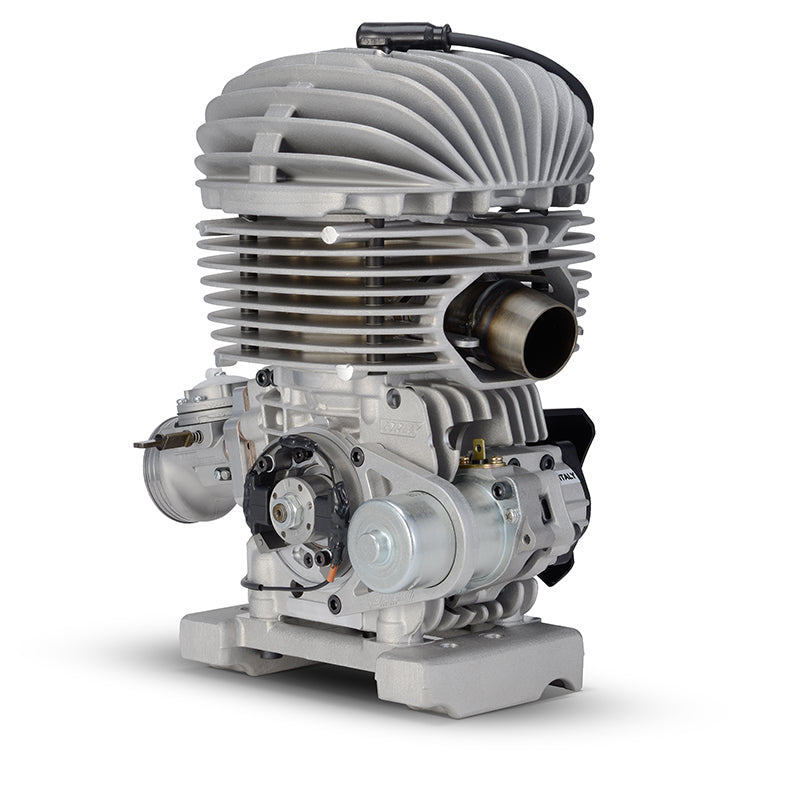

Vortex ROK VLR
DISPLACEMENT: 100CC
ENGINE: 2 stroke
BORE: 48.20 mm
STROKE5: 4.00 mm
CONROD C-TO-C DISTANCE: 102.00 mm
INTAKE SYSTEM: Reed Valve
CARBURETTOR: Butterfly Valve 24mm
INTAKE SILENCER: Arrow LA22
CYLINDER LINER/SLEEVE: Cast Iron Made Dry-Liner/Sleeve
TRANSFER PORTS: 3 Ports
EXHAUST PORTS: 1 Elliptical Port + 2 Boosters
COOLING SYSTEM: Air Cooled
LUBRICATING SYSTEM: Oil-Fuel Mixture Lubricated
IGNITION SYSTEM: Selettra
START SYSTEM: Integrated Starter Motor
TRANSMISSIONW: Clutch
CLUTCH SYSTEM: Centrifugal Dry-Clutch System
COMPRESSION RATIO: 10.5 : 1
MAXIMUM POWER: 20Hp at 9800 rpm
MAXIMUM TORQUE: 1,4 Kgm at 9600 rpm
MAXIMUM SPEED: 16000 rpm
*Engine kit comes with Senior Header, Junior Header Sold Separately
